Faraday Tabletop Enclosure 2′ x 2′ x 2′

Product Overview

The Small Faraday Tent LX is a portable RF/EMI shielding enclosure designed to comfortably accommodate a single operator with a compact workstation. Built with a double-layer shield, Faraday thread, and heavy‑duty seams, it delivers reliable RF/EMI isolation in field or shop environments. The enclosure supports a small table and chair and includes integrated ventilation and power connectivity to enable practical, on-site operation without compromising shielding integrity.

Key Technical Advantages

• Single-occupant shielded enclosure designed for a compact workstation
• Two shielded honeycomb vents; lower intake with fan and sleeve, upper exhaust

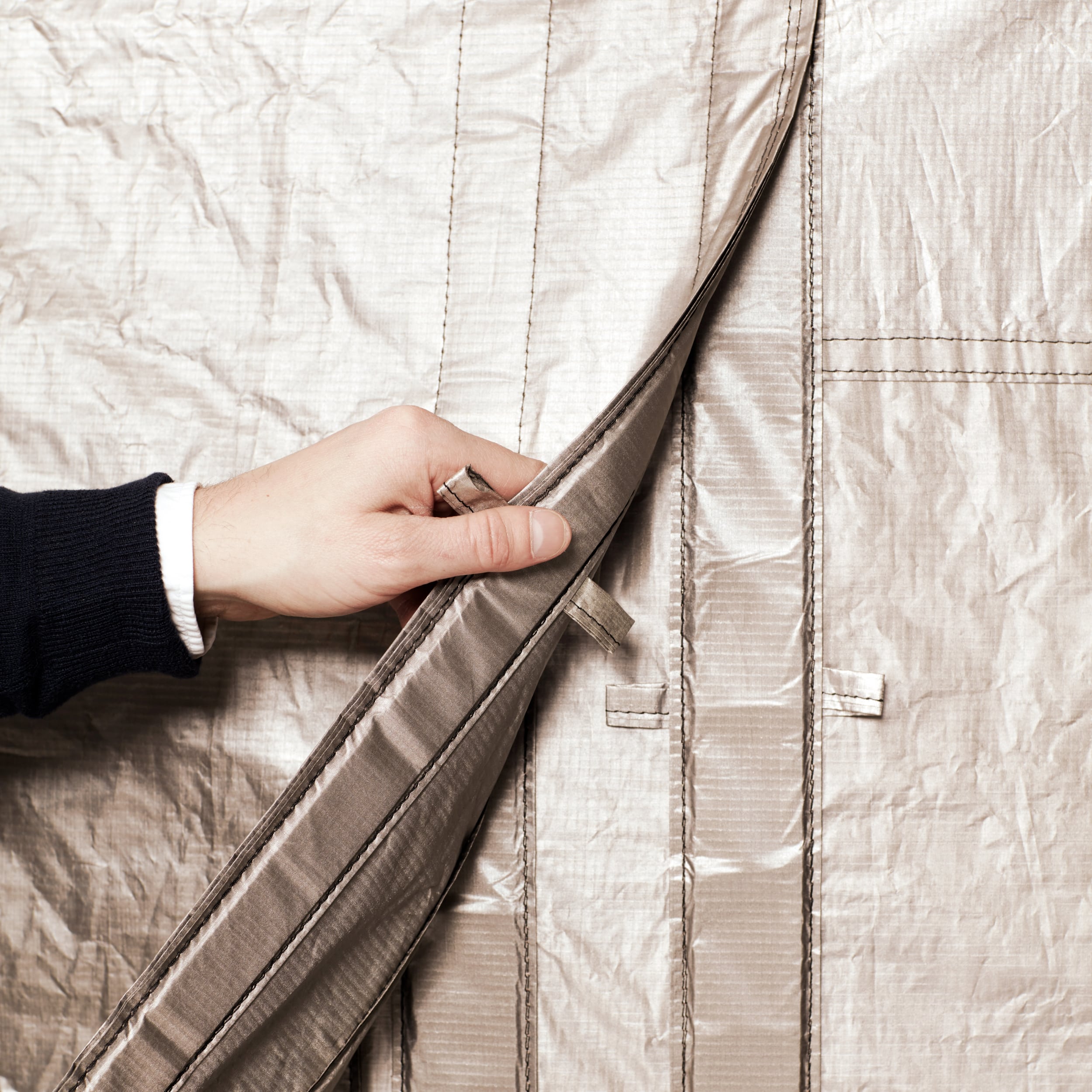

• Double layer, Faraday thread, heavy-duty seams for robust shielding and durability
• Built-in power strip and extra connectors to support equipment and test setups
• Comprehensive field-ready kit: tensioning accessories, protective bags, rip repair kit



Full Specifications

Applications / Use Cases

• Portable shielded workspace for RF/EMI testing and measurements requiring operator presence
• Field deployment of equipment requiring shielding containment
• Prototype development and experiments where RF/EMI isolation is required in a compact enclosure

Small tent: 2′ x 2′ x 2′ (comfortably holds one individual with desk and equipment)

Test range: The tent has an average shielding effectiveness of -85 dB attenuation in the range of 30 MHz to 1 GHz and averages -90 dB attenuation in the range of 1 GHz to 11 GHz.

Tents enable maximum, comprehensive security for forensic and anti-espionage investigations. The Faraday Tent secures more than just devices, it secures an entire area so that investigators may operate in a protected field.

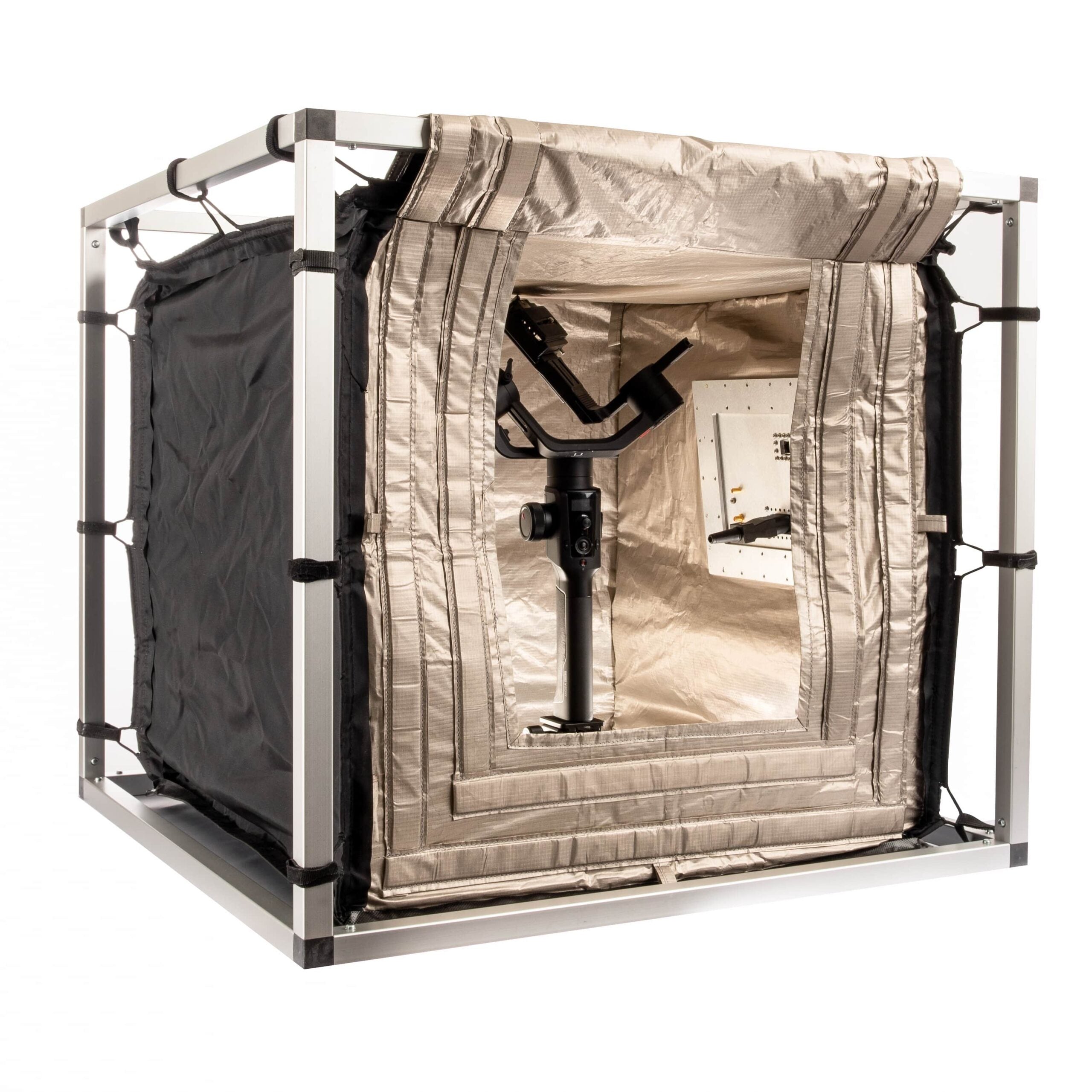

The 104 cubic feet of space within the tent comfortably accommodates an operator with space for a small desk and equipment. Transmitters are not able to operate from the inside, granting secure communication in anti-espionage investigations. Every tent includes double-wall construction, double mag/zip doors, positive air ventilation, as well as shielded power, Ethernet, and LED lighting.

Tent allows for easy setup and break down when quick deployment and enclosure is needed. RF/EMI tents offer an affordable alternative to traditional hard wall chambers and soft wall enclosures match shielding effectiveness in comparison. Independent testing of a complete assembled tent system including installed components, resulted in a minimum signal attenuation of -85.7 dB over a range of frequencies from 400 MHz to 18 GHz measuring through the wall at multiple locations. Faraday Defense Tents are offered in standard sizes or you can opt to have an enclosure designed and built to custom specifications
